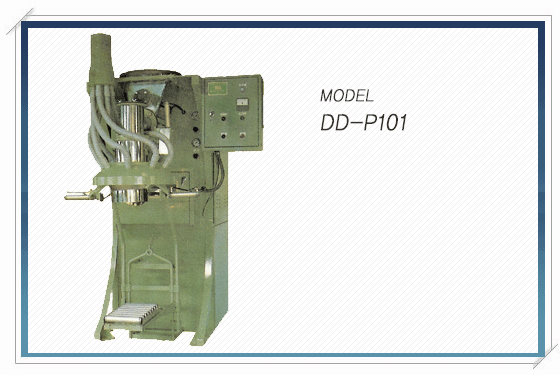

AIR PACKER & BAG PLACER
AIR PACKER & BAG PLACER에 대해 안내해드립니다.
| Model | DDP-101A | DDP-101S |
|---|---|---|
| Capacity | 10-20 Bags/hr | 30-50 Bags/hr |
| Weighing range | 10-50 ㎏ / Bag | 10-50 ㎏ / Bag |
| Accuracy | ±1/200 | ±1/200 |
| 피계량물 | Powder | Powder |
| 계량방식 | Load cell 방식 | Load cell 방식 |
| 공급장치 | Air | Screw & Air |
| 계량호퍼용량 | 20~1500ℓ | 20~1500ℓ |
| 전원 | AC 220/380V 50/60 Hz 3상, 1.5KA | |
| 공기원 | 5~7㎏/㎠ | |
| Model | DDB-360-VI |
|---|---|
| Placing Capacity | 360 Bag/hr |
| Bag Magazine | 360 Bag (Max) |
| Bag Mat'l | Kraft paper |
| Power source | AC 220/380V 50/60 Hz 3상, 1.5KA |
| Power consumption | 1KW |
| Air supply | 5㎏/㎠ |
| Air consumption | 300 NI/min |
| Weight | 600㎏ |
